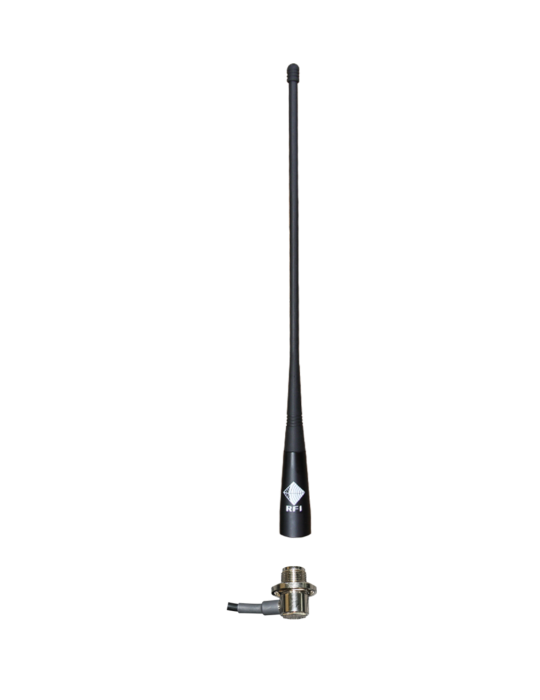

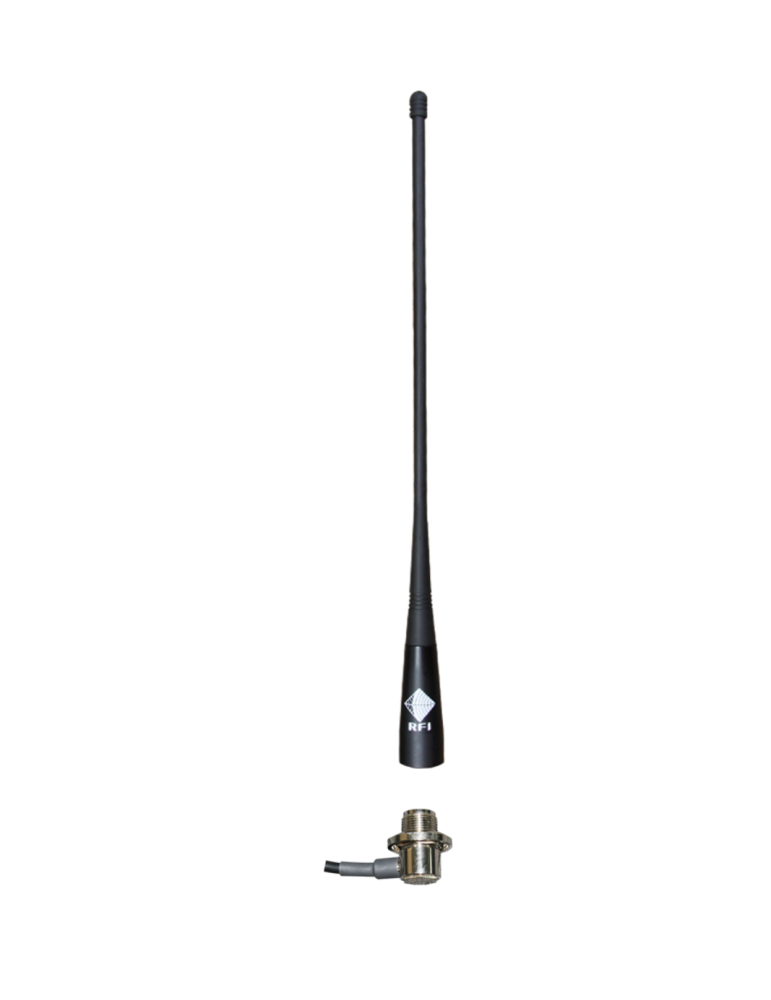

RFI UHF CB 4dBi Mopole 477MHz Antenna MBC 5m FME(F) UHF(A)
Write your review
The CD34 Series Mopole antenna is specifically designed to be used in a variety of mounting positions such as a vehicle mirror, gutter or roof rack. Mounting in such positions, the CD34 is the ideal substitute for an antenna which would normally need to be mounted in the centre of a metal roof to obtain maximum efficiency.
20 people are viewing this right now
CD34-71-53
$99.00
Tax included
CD34-71-53 Features: The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element. The end result is a tremendously rugged antenna suited for almost any application. The antenna is available in a stud mounted version or MBC base with removable whip. Both are supplied with 5 metres RG58 C/U cable & factory terminated with a FME female connector for ease of installation. Also included is a FME male to UHF male adaptor for connection to all UHF CB radios.
Features:
• Ground plane independent design allows installation in almost any location
• Available in stud or MBC mount
• Robust UV stable base & flexible whip
Data sheet
- 345
- 476 - 477
- Full. No tuning required
- 4
- 477 MHz
- Supplied pre-tuned
- Vehicle Antenna
- UHF 380-520 MHz
