JTRON 12 WAY FUSE HOLDER
Write your review
12 Way Fuse Box And Cover Fits up to x12 Fuses - Suitable for use with ATS blade fuses & plug-in circuit breakers. Lockable Transparent Cover included. A professional fuse box eliminates extensive and messy wiring in applications with limited earth connections such as caravans, motor homes and marine applications etc.
23 people are viewing this right now
FH001
$65.00
Tax included
Product Material: PA66 body, PC waterproof dust cover, nickel-plated copper connection terminal, sticker
Input rated voltage: 32V
Output maximum current: 30A per circuit
Main line terminal: M5 threaded stud
Main line wire: #4-8
Single line terminal: M4 threaded stud
Single wire: #12-16
Product installation range: Can be installed on cars, Yueshu, RV, bus, yacht, boat, etc.
Product use range: It can be directly connected to the line of any electric appliance on the car/ship such as: roof lamp, car headlight, width lamp, fog lamp, warning light, car refrigerator, car charger, car fan, car TV, etc.
Features
- Red LED warning light will light up immediately when the corresponding fuse is blown. It is both safe and easy for you to check and replace the blown fuse.
- Made of environment friendly PBT material, this fuse holder meets all the standards of an ideal fuse box. It is mechanically strong, insulated, heat resistant and flame resistant. It hardly lead to break, deformation, combustion or short-circuit.
- Comes with multifunctional DIY sticker for convenient examination & repair. You can easy to identify which appliance is going wrong. Perfect for outdoor troubleshooting.
- Optimal Conductivity & Best Service 12-circuit ATC/ATO/ATF blades fuse block, meeting all standards of an ideal fuse box. If you have any problem with this product, please feel free to contact us. We are always ready to help.
- 12 Circuit Fuse Block Box is applied to ATC/ATO (Middle Size) fuses, which has positive & negative side. It means every positive terminal screw has a negative one. Max operating voltage: 32V DC; Max 30A per circuit & 100A per panel.

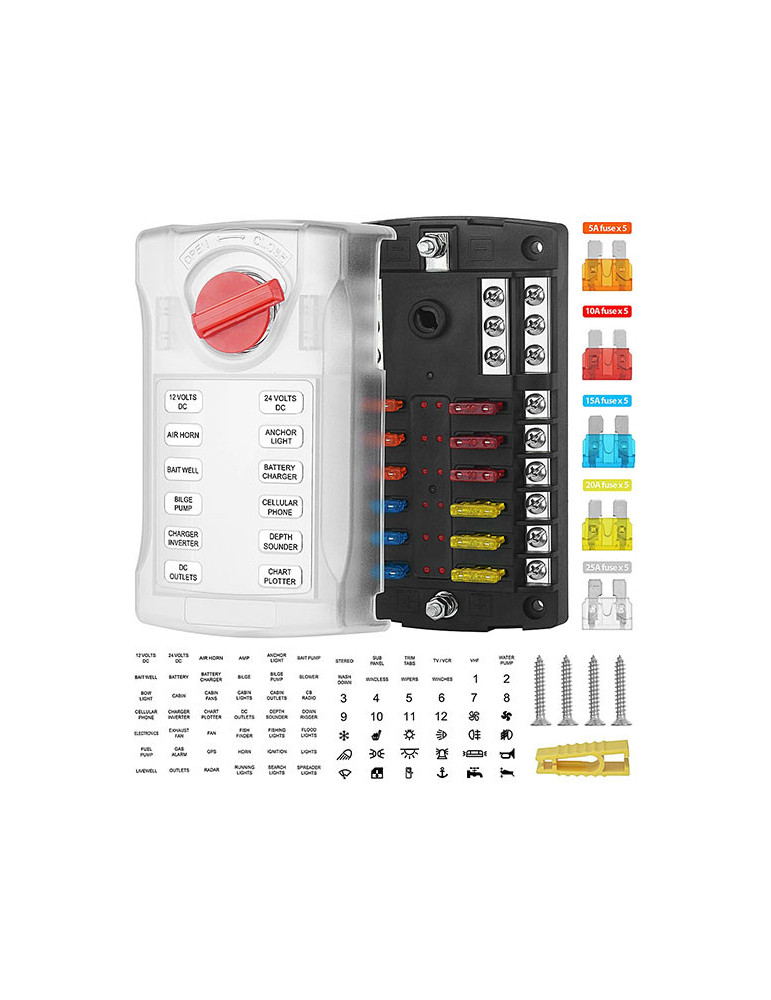

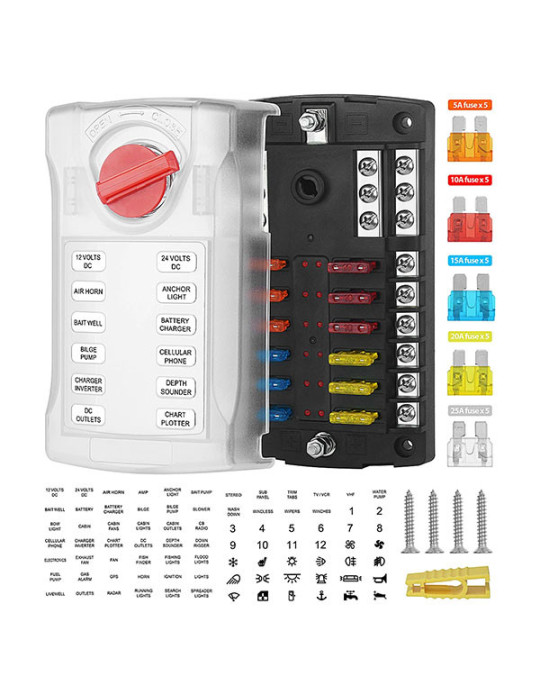

- Package includes: 12way fuse box x1, fuse:5A x5, 10A x5, 15A x5, 20A x5, 25A x5, fuse clip x1, screw x4, mark sticker x1.
